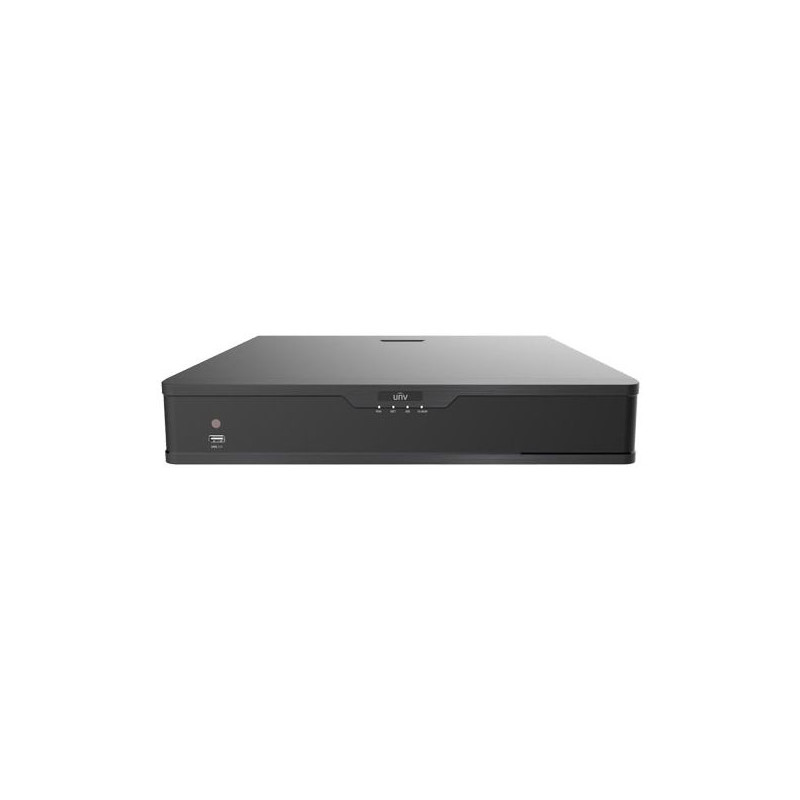

32 Channels Ultra H.265/H.265/H.264 Network Video Recorder NVR304-32E2
search
  • 32 Channels Ultra H.265/H.265/H.264 Network Video Recorder NVR304-32E2

32 Channels Ultra H.265/H.265/H.264 Network Video Recorder NVR304-32E2

  • Support Ultra H.265/H.265/H.264 video formats
  • 32-channel input
  • Supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
  • HDMI and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • 4 SATA HDDs, Up to 6TB for each HDD
  • Support RAID 1, 5
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
Condition New
Brand Uniview
NDAA Compliance Yes
Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Compression Supported Yes
Operating temperature -10°C~+ 55°C (+14°F~+131°F)
IP Channels 32 Channels
Harddrive Size No HDD
Protocols Onvif Protocols, Uniview Protocols
Features Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HDMI Output (720p/1080p), Two-way Audio
SATA 4 SATA interfaces
Audio 1-ch, RCA
Compression Ultra 265, H.265, H.264
Bandwidth Incoming Bandwidth: 320Mbps, Outgoing Bandwidth: 320Mbps
Dimensions 400mm × 363mm × 74mm (15.7" × 14.3"× 2.9")
Voltage 100~240V AC
Power Consumption ≤ 20 W
Network 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Front panel: 1 x USB2.0,Rear panel: 1 x USB3.0
Two Way Audio Yes
H.264 Compression Yes
DDNS Functionality Yes
HDMI Output (720p/1080p) Yes
H.265 Compression Yes
NVR304-32E2
