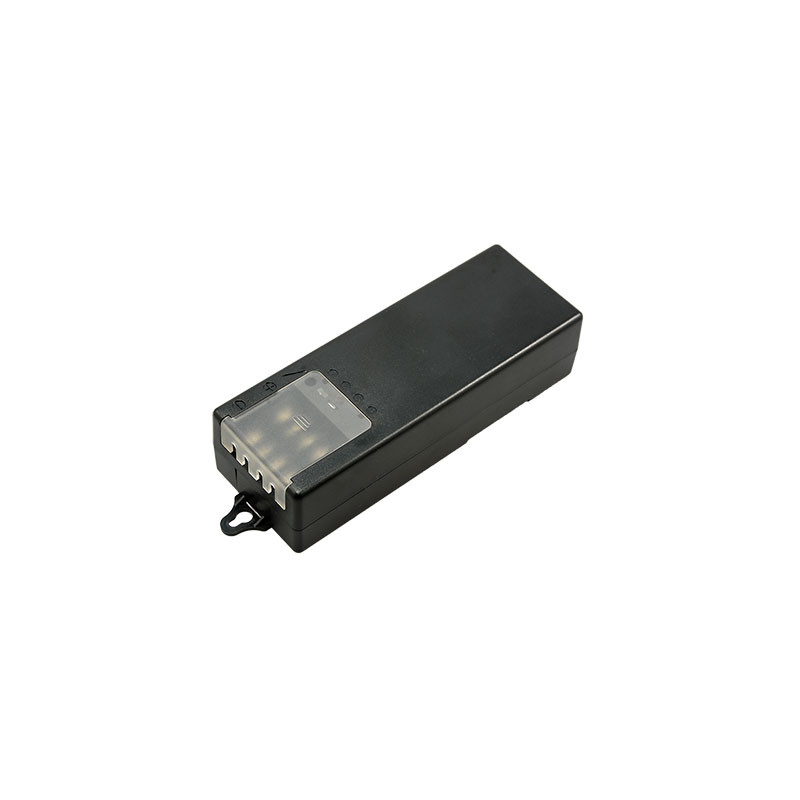

4 Channel Power Supply 5A MGT1254C

4 Channel Universal Power Supply Wall or DIN Mount

This is an easy solution for CCTV power supplies and provides power for up to 4 cameras at one time. With individually PTC protected outputs, this 5A quad channel wall mount/DIN rail mount will protect CCTV equipment from damage making it an excellent and reliable choice.

Features

  • Adjustable voltage
  • Individually PTC protected outputs
  • LED indicator
  • 4 terminal blocks
  • Automatic voltage regulation for wide input operation voltage and stable output voltage

Specifications

  • Output Voltage: 12 VDC
  • Output Current: 5 A
  • Output Power: 60 W
  • Input Voltage: 100 to 240 VAC @ 50/60 Hz
  • AC input cord is included (NEMA 5-15P to IEC C13 plug)
  • Adjustable: 4 channel adjustable output, 11 VDC to 15 VDC
  • Protection: Short circuit, surge, overload
  • Mounting: Wall or DIN-rail
  • Agency Approvals: UL, CUL, CE
  • Size: 5.9" x 2.36" x 1.18
Specification Value
Output Voltage 12 VDC
Output Current 5 A
Power Rating 60 W
Input Voltage 100 VAC to 240 VAC
Input Frequency 50 Hz to 60 Hz
Output Connector Type Screw Terminal Block
Agency Approvals UL, CUL, CE
Low Power Source (LPS) No
PFC Function No
Width 5.90 in.
Height 2.36 in.
Depth 1.18 in.
Number of Outputs 1
