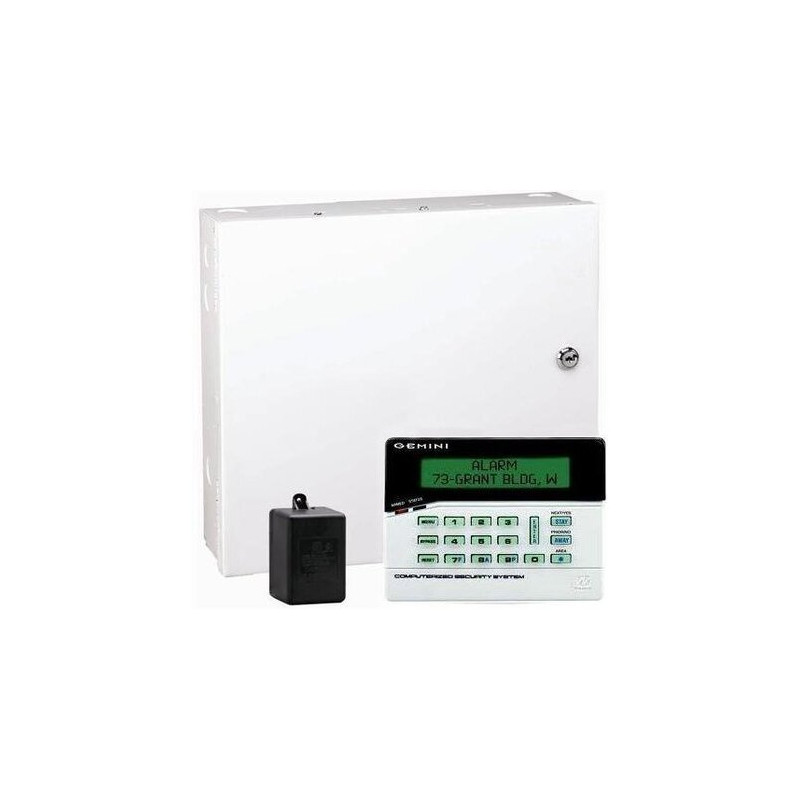

Napco Security Systems 16/32 Zone Control Panel GEMP1632INTROPK

Napco Security Systems Inc. 16/32 Zone Control Panel W/Gemrp1Cae2

The Gemini GEM-P1632 Hybrid 8 to 32-Zone Control/Communicator features 8 zones expandable to 32 zones with (multiplexing) assignable to either of two areas. Supporting up to 32 user codes, 8 relays, and X-10 support, the GEM-P1632 powerhouse has it all, wireless or hardwire! The panel supports all reliable, crystal-control Gemini Wireless, proven in independent tests to outperform the top competitive brands.

Specs

  • Manufacturer Napco Security Systems Inc.
  • Condition New
  • Model Number - GEMP1632INTROPK
  • Output power amps: - (with 20VA transformer included) 500mA/2A; with optional 40VA trans 650mA/2A.
  • Operating temp: - 0 - 49 degrees C.
  • Input power: - 16.5VAC via Class 2 plug-in 40VA transformer
  • Loop voltage: - 10-13Vdc
  • Loop current: - 2.5mA with 2.2k ohm EOLR; 5mA for 2-wire fire
  • Loop resist.: - 300 ohm max.; 50 ohm max for 2-wire fire
  • Aux & remote power: - 12Vdc regulated
  • Combined standby current: - 650mA
  • Alarm current: - 2A
  • Burg. voltage output: - 1
  • Programmable negative outputs: - 2
GEMP1632INTROPK
