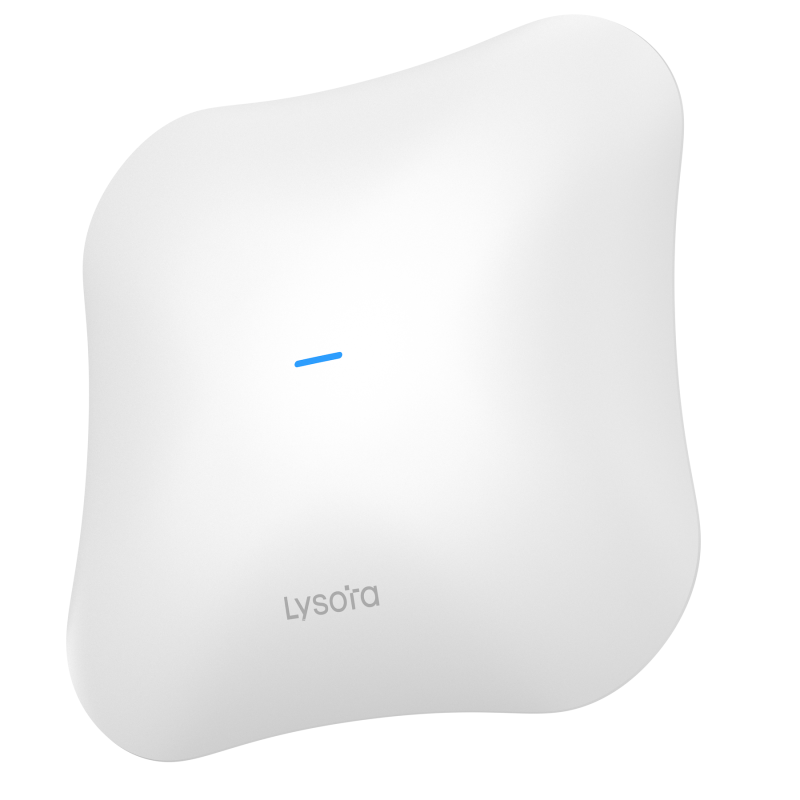

L7 Wi-Fi 7 BE5040 Dual-Band Ceiling Mount Access Point

Dimensions

208 mm x 208 mm x 40 mm (8.19 in. x 8.19 in. x 1.57 in.)

Weight

≤ 0.75 kg (1.65 lbs.)

Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Spatial Streams

5

Coverage Area

145 ㎡ (1560.77 square ft.)
Note: The data is obtained in an ideal environment without obstruction. The signal coverage radius depends on client performance and environmental interference

Max.Client Count

64 (2.4 GHz)
511 (5 GHz)
511 (2.4 GHz and 5 GHz enabled)

Recommended number of associated wireless clients

● Support for IEEE 802.11ax and 160 MHz:
16 (2.4 GHz)
94 (5 GHz)
110 (2.4 GHz and 5 GHz enabled)
● Support for IEEE 802.11ax and 80 MHz:
16 (2.4 GHz)
84 (5 GHz)
100 (2.4 GHz and 5 GHz enabled)
● Support for IEEE 802.11ac:
16 (2.4 GHz)
64 (5 GHz)
80 (2.4 GHz and 5 GHz enabled)

Mounting

Ceiling, Wall (Mounts Included)

Networking Interface

1 x 10/100/1000/2500BASE-T port
1 x 10/100/1000BASE-T port

Wi-Fi Protocols

2.4 GHz: IEEE 802.11 b/g/n/ax/be
5 GHz: IEEE 802.11 a/n/ac/ax/be

MIMO

2.4 GHz: 2 x 2 MU-MIMO
5 GHz: 3 x 3 MU-MIMO

Channel bandwidth

2.4 GHz: 20/40 MHz
5 GHz: 20/40/80/160 MHz

Wireless Data Rate

2.4 GHz: 688 Mbps
5 GHz: 4323 Mbps

Antenna Gain

2.4 GHz: 3.00 dBi
5 GHz: 4.00 dBi

Max. Transmit Power

2.4 GHz: 27 dBm
5 GHz: 29.7 dBm

Power Consumption

≤ 30 W

Power Method

PoE+
DC(12 V, 2.5A), DC Power Adapter Is Not Included

Modulation

OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps
DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMA

Receiver Sensitivity

11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps)
11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps)
11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15)
11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9)
11ac: 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9)
11ac: 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9)
11ac: 160 MHz: –76 dBm (MCS0), –50 dBm (MCS9)
11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11)
11ax: 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11)
11ax: 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11)
11ax: 160 MHz: –76 dBm (MCS0), –49 dBm (MCS11)
11be: 20 MHz: –85 dBm (MCS0), –52 dBm (MCS13)
11be: 40 MHz: –82 dBm (MCS0), –49 dBm (MCS13)
11be: 80 MHz: –82 dBm (MCS0), –46 dBm (MCS13)
11be: 160 MHz: –79 dBm (MCS0), –44 dBm (MCS13)

LED

1 x System Status LED

Button

1 x Reset button

Environment

Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: –40°C to +70°C (–40°F to +158°F)
Operating Humidity: 5% RH to 95% RH (Non-condensing)
Storage Humidity: 5% RH to 95% RH (Non-condensing)

Weather Resistance

IP Rating: IP41
Lightning Protection/Surge Protection ±2 kV

NDAA Compliant

Yes

Health

UL 62368-1:2019

RF

EN 300 328
EN 301 893
EN 300 440

EMC

FCC 47 CFR Part 15 Subpart B
ICES-003 Issue 7"

Certifications

FCC, IC, cTUVus

Operating Frequency

US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
