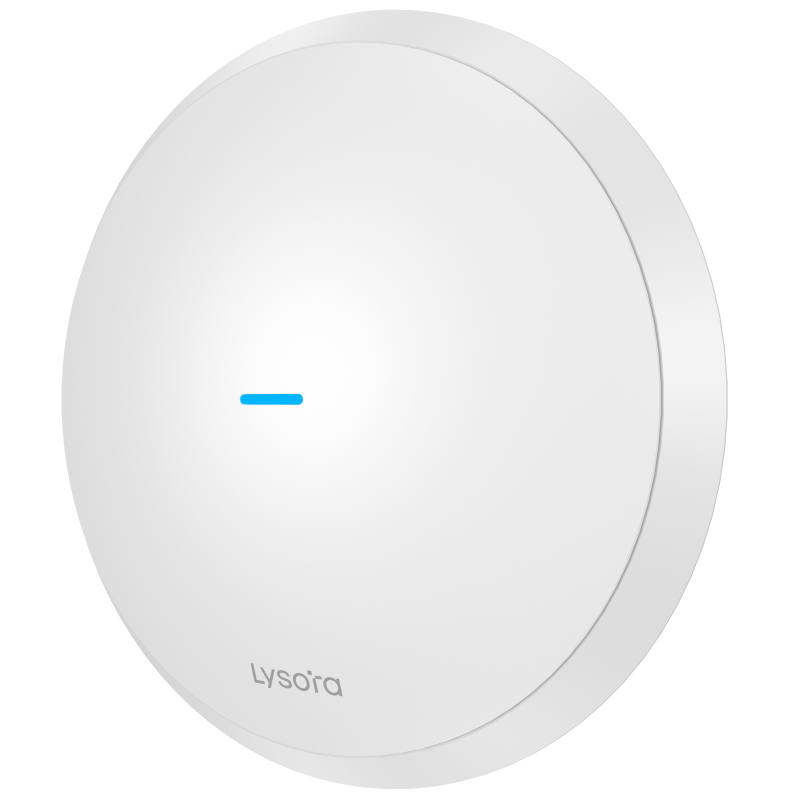

L7Lite Wi-Fi 7 BE3600 Dual-Band Ceiling Mount Access Point

Dimensions

103mm x 53.4 mm x 199 mm (4.06 in. x 2.1 in. x 7.83 in.) (excluding mounting bracket)

Weight

0.37 kg (0.82 lbs) (without packaging materials)
0.91 kg (2.01 lbs) (with packaging materials)

Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac

Spatial Streams

3

Coverage Area

3km (1.86miles)

Mounting Type

Wall/Pole

CPU

Single-core processor, 575/580 MHz clock frequency

Flash Memory

16 MB

RAM

64 MB

Networking Interface

3 x 10/100BASE-T ports

Wi-Fi Protocols

2.4 GHz: IEEE 802.11 b/g/n
5 GHz: IEEE 802.11 a/n/ac

MIMO

2.4 GHz: 1 x 1 SISO
5 GHz: 2 x 2 MIMO

Channel bandwidth

2.4 GHz: 20/40 MHz
5 GHz: 20/40/80 MHz

Wreless Data Rate

2.4 GHz: 300 Mbps
5 GHz: 867 Mbps

Antenna Gain

2.4 GHz: 2 dBi
5 GHz: 13 dBi

Antenna horizontal orientation

30°

Antenna vertical orientation

30°

Max. Transmit Power

2.4 GHz: 20 dBm
5 GHz: 29 dBm

Power Consumption

9 W (Without PoE Out)
24.4 W (With PoE Out)

Power Method

DC power adapter (24 V, 1.5 A) (adapter included)
24 V Passive PoE injector (injector included)
DC power adapter (12 V, 1 A)
PoE/PoE+

PoE Power Pins

1-2 (+), 3-6 (-);4-5 (+), 7-8 (-)

PoE Budget

15.4 W (PoE budget for two ports)
When powered by 24 V passive PoE or 802.3at, the device can supply power to other devices via PoE.
When powered by 12 V DC or 802.3af, the device cannot supply power to other devices via PoE

Modulation

802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Receiver Sensitivity

802.11b: -91 dBm (1 Mbps), -88 dBm (5 Mbps), -85 dBm (11 Mbps）
802.11a/g: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps)
802.11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65dBm@MCS15
802.11ac HT20: -83 dBm (MCS0), -57 dBm (MCS9)
802.11ac HT40: -79 dBm (MCS0), -54 dBm (MCS9)
802.11ac HT80: -76 dBm (MCS0), -51 dBm (MCS9)

LED

1 x system status LED
3 x Ethernet port LEDs
3 x Signal status LEDs

Button

1 x Reset button

Environment

Operating Temperature: –30°C to +55°C (–22ºF to +131ºF)
Storage Temperature: –40°C to +85°C (–40°F to +185°F)
Operating Humidity: 5% RH to 95% RH (non-condensing)
Storage Humidity: 5% RH to 95% RH (non-condensing)

Weather Resistance

IP Rating: IP55
Service port: ±4 kV for common mode
Power connector: ±4 kV for common mode and ±2 kV differential mode

NDAA Compliant

Yes

Health

UL 62368-1:2019

EMC

FCC 47 CFR Part 2 Subpart J
FCC 47 CFR Part 15 Subpart E
IC RSS-247 Issue 3
FCC 47 CFR Part 15 Subpart B
ICES-003 Issue 7

Certifications

FCC, IC, cTUVus

Operating Frequency

US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz
