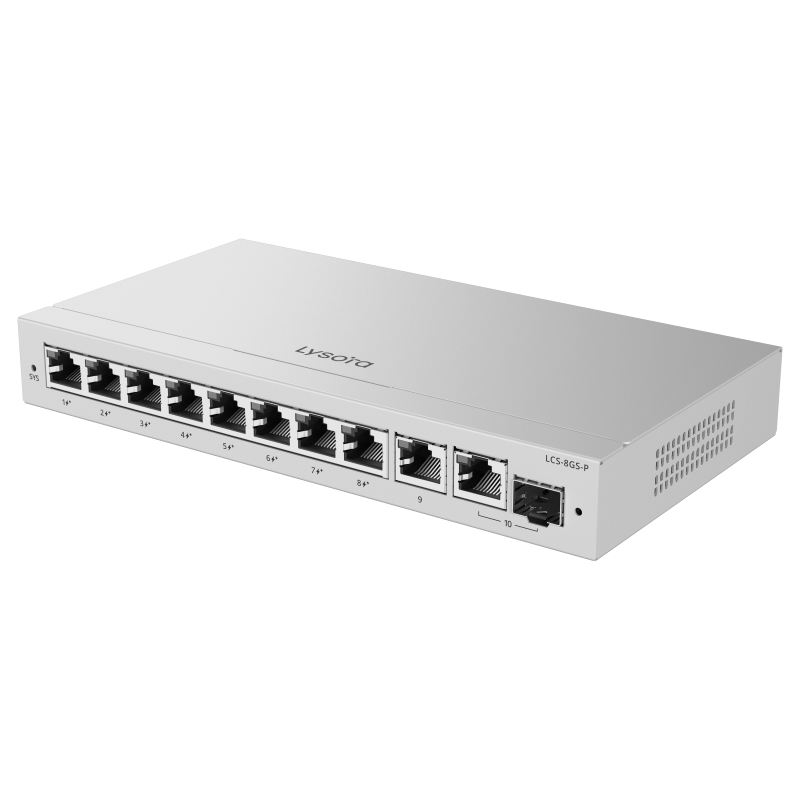

LCS-8GS-P 8-Port Cloud Managed PoE Switch with 120 W PoE Budget
- 10-Port Gigabit Smart POE Switch
- 8 PoE/POE+ Gigabit RJ45 Ports with 1 Gigabit RJ45/1 combo SFP uplink ports
- 120W PoE power budget, Desktop Steel Case
Overview
Dimensions
202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in.)
Weight
0.55 kg (1.21 lbs) (without packaging materials)
1.65 kg (3.64 lbs) (with packaging materials)
1.65 kg (3.64 lbs) (with packaging materials)
Port Specifications
Total number of RJ45 ports
10
Total number of optical ports
1
Number of 1GE combo ports
1
Number of 1GE SFP ports
1
Number of 10GE SFP+ ports
-
Number of 10/100BASE-T ports
-
Number of 10/100/1000BASE-T ports
10
Number of 10/100/1000/2500BASE-T ports
-
Number of 100/1000/2.5G/5G/10GBASE-T ports
-
PoE Specifications
Number of PoE/PoE+ Out ports
8
Number of PoE/PoE+/PoE++ Out ports
-
PoE budget
120 W
PoE power pins
1–2 (+), 3–6 (-)
Casing
Metal
Mounting
Wall/Desk
Warranty
3 years
Hardware
System Specifications
Switching capacity
20 Gbps(bit/s)
Forwarding rate
14.8 Mpps
Buffer size
1.5 Mbit
CPU
MAC chip, single-core processor, 62.5 MHz clock frequency
Flash memory
4 MB
System Performance Capacity
Recommended camera limit
200W H265: 40
400W H265: 20
400W H265: 20
Power supply and Consumption
Power Method
DC power adapter
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Rated input current: 2.5 A
Output：
● Rated output voltage: 54 V DC
● Maximum output current: 2.4 A
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Rated input current: 2.5 A
Output：
● Rated output voltage: 54 V DC
● Maximum output current: 2.4 A
Max. Power Consumption
10 W (with no PoE load)
130 W (with PoE full load)
130 W (with PoE full load)
Heat Dissipation
34.2 BTU/hr (220 V/50 Hz), with no PoE load
443.6 BTU/hr (220 V/50 Hz), with PoE full load
443.6 BTU/hr (220 V/50 Hz), with PoE full load
Environment and Reliability
Surge protection
Service port: ±6 kV for common mode
Power connector: ±4 kV for common mode and ±2 kV for differential mode
Power connector: ±4 kV for common mode and ±2 kV for differential mode
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–40°C to +70°C (–40°F to +158°F)
Operating humidity
10% RH to 90% RH (non-condensing)
Storage humidity
5% RH to 95% RH (non-condensing)
Fan
Fanless design
Cooling
Natural cooling
Altitude
–500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
MTBF
200,000 hours
ESD protection
Air discharge: 8 kV
Contact discharge: 6 kV
Contact discharge: 6 kV
Software
Basic Configurations
PoE watchdog
YES
Online upgrade
YES
Interface
Jumbo frame length (MTU)
Yes
EEE
YES
Cable test
YES
Ethernet Switching
Maximum number of VLANs
Yes
Maximum number of MAC address entries
Yes
VLAN configuration supported on LAN ports
YES
IEEE 802.1Q VLAN
YES
Static MAC address
YES
Interface flow control
YES
Inbound or outbound rate limiting based on interface traffic
YES
IP Service
DNS client
YES
DHCP client
YES
Security
Port isolation
YES
Broadcast storm control
YES
Multicast storm control
YES
Unknown unicast storm control
YES
CPU Protection Policy
YES
DHCP snooping
YES
Network Management and Monitoring
Web management
YES
Cloud management
YES
App management
YES
Mirroring
YES
Self-Organizing Network
YES
Camera detection
YES
Compliance and Standard
Certification and Regulatory Compliance
NDAA Complain
YES
EMC
EN 55032
EN 61000-3-2
EN 61000-3-3
EN 55035
EN 300 386
EN 61000-3-2
EN 61000-3-3
EN 55035
EN 300 386
Safety compliance
EN 62638-1
Certification
FCC, IC
Package Contents
Device
Device
1
Manual
User Manual
1
Warranty Card
1
Accessories
Rubber pad
-
Power cord retention clip
-
Screw
-
Grounding cable
-
Power cord
1 x 1 m (3.28 ft.)
Rack-mount bracket
-
LCS-8GS-P
- 10-Port Gigabit Smart POE Switch
- 8 PoE/POE+ Gigabit RJ45 Ports with 1 Gigabit RJ45/1 combo SFP uplink ports
- 120W PoE power budget, Desktop Steel Case
