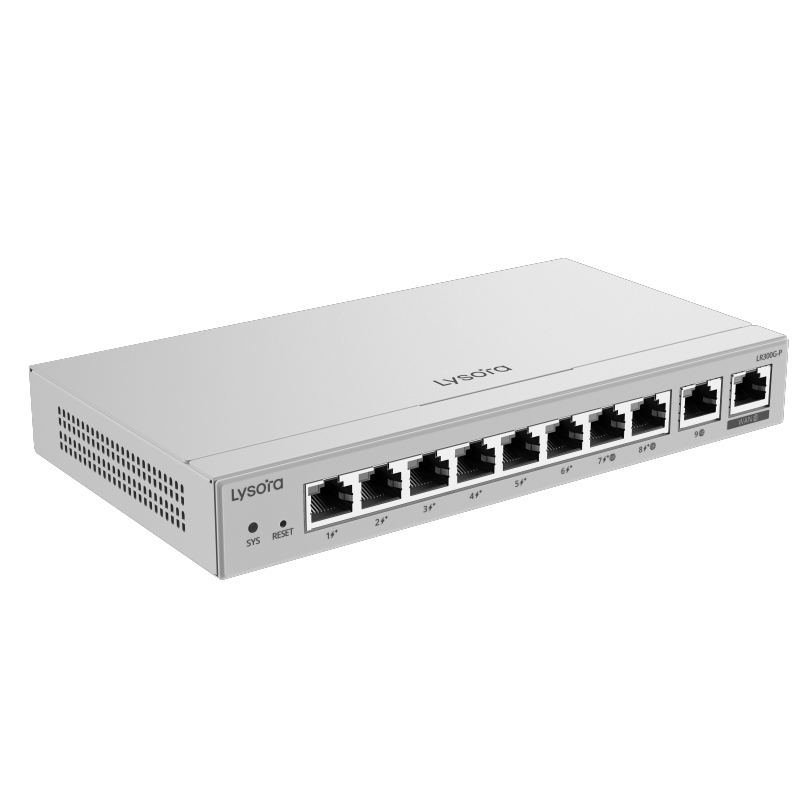

LR300G-P 10-Port Cloud Managed Router with 110 W PoE Budget

Desktop 10-port full gigabit router, providing one WAN port, six LAN ports, and three LAN/WAN ports
supporting eight PoE/PoE+ interfaces and maximum 110 W PoE power
recommended concurrency of 300, maximum 1.5 Gbps throughput
cloud remote management supported

Product dimensions

202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in.)

Weight

1.62 kg (3.57 lbs)(with packaging materials)
0.55 kg (1.212 lbs)(without packaging materials)

Port Specifications

Total number of RJ45 ports

Total number of optical ports

Number of 1GE SFP ports

Number of 10GE SFP+ ports

Number of 10/100/1000BASE-T ports

Number of 10/100/1000/2500BASE-T ports

Number of 100/1000/2.5G/5G/10GBASE-T ports

Maximum number of LAN port

Maximum number of WAN ports

Number of fixed LAN ports

Number of fixed WAN ports

Number of LAN/WAN ports

PoE Specifications

Number of PoE/PoE+ Out ports

Number of PoE/PoE+/PoE++ Out ports

PoE budget

110 w

PoE power pins

1–2 (+), 3–6 (-)

Enclosure Material

Metal

Mounting Type

Desktop Mounting

Warranty

3 years

Hardware

System Specifications

Dual-core processor, 1.35 GHz clock frequency per core

Flash memory

256 MB

512 MB

USB port

Hard disk

1 x system status LED
10 x Ethernet port LEDs

Buttons

1 x reset button

System Performance Capacity

Maximum number of concurrent sessions

100000

Recommended number of concurrent clients

Throughput

1.5 Gbps

Power supply and Consumption

Power Method

DC adapter:
Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60Hz
Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz (optional)
Rated input current: 2.5 A
Output:
Rated output voltage: 54 V DC
Maximum output current: 2.4 A

Dimensions of the DC connector

Outer Diameter: 5.5 mm
Inner Diameter: 2.1mm
Depth: 10 mm

Max. Power Consumption

9 W (with no PoE load)
119W (with full PoE load)

Environment and Reliability

Surge protection

Service port: ±4 kV for common mode
Power connector: ±4 kV for common mode and ±4 kV for differential mode

Operating temperature

–10°C to +50°C (14°F to 122°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Operating humidity

0% RH to 100% RH (non-condensing)

Storage humidity

0% RH to 100% RH (non-condensing)

Fanless

Cooling

Natural cooling

ESD protection

Contact discharge: 4 kV
Air discharge: 6 kV

Software

Basic Configurations

Working mode

AC mode
Routing mode

Internet access mode

PPPoE
DHCP
Static IP

Self Organizing Netowk

Maximum number of devices that can be managed

Maximum number of APs (routing mode)

Maximum number of APs (AC mode)

Ethernet Switching

IEEE 802.1Q VLAN

Maximum number of VLANs supported by all LAN interfaces

IP Routing

Load balancing

Static routing

IPv4 and IPv6 Static route

Maximum number of IPv4 static routes

Maximum number of IPv6 static routes

IPv4 and IPv6 PBR

Number of IPv4 PBR entries

Number of IPv6 PBR entries

URL-based routing

Number of RIP routes

Number of BGP routes

Number of OSPFv2 instances

Number of OSPF neighbors on a point-to-point interface

Number of OSPFv3 routes

Number of dynamic IPv4 routes

Number of dynamic IPv6 routes

IS-IS

Security

DHCP snooping

IP-MAC binding

MAC address filtering

Security zone

Local attack defense

Limiting the number of connections

Multicast rate limit

Network sharing prevention

Authentication

Local portal authentication

SMS-based authentication
One-click authentication
Authorization-based authentication
QR code authentication
Authentication (IP address-based) across Layer 3 switches
Self-service logout

Cloud portal authentication

Custom portal page
Delivery through cloud portal page
One-click login to cloud portal page
Account-based authentication
Voucher authentication
SMS-based authentication supported by cloud portal page

Third-party authentication

WISPr for third-party portal authentication
Wi-FiDog for third-party portal authentication

MAB on Cloud

MAB for local authentication

MAB for RADIUS-based authentication

802.1X authentication

PPPoE authentication

VPN & VPN Performance

Site-to-Site VPN

IPsec VPN
WireGuard

Client-to-Site VPN

L2TP VPN
L2TP over IPSec VPN
OpenVPN
PPTP VPN
WireGuard

L2TP VPN bandwidth

540 Mbps

PPTP VPN bandwidth

640 Mbps

OpenVPN bandwidth

100 Mbps

IPsec VPN bandwidth

170 Mbps

IPv6 IPsec VPN bandwidth

170 Mbps

WireGuard performance

300 Mbps

L2TP over IPsec bandwidth

160 Mbps

SD-WAN

SD-WAN performance

300 Mbps

Gateway Features

User Behavior Management (UBM)

Application control

Flow control

Traffic audit

Audit log

Local storage of traffic audit logs

IP Service

Proxy ARP

Maximum number of ARP entries

IPv4/IPv6

Number of port mapping entries

Multicast

AP management

Wi-Fi
RF parameters
Managing clients
Configuring an allowlist and a blocklist
802.1X authentication
AP Mesh
WQoS
802.11k/v roaming
AP portal authentication
AP load balancing
AP LEDs
Layer 2 isolation
Configuring the power supply mode of the AP on Cloud

Maximum number of SSIDs

Client association

Network Management and Monitoring

Web management

Cloud management

Upgrading device software version through App
Restarting devices through App
Remotely monitoring devices through App
Self organizing network through code scanning
Cloud-based O&M
Cloud-based upgrade

Management on App

Web login information

HTTP login

HTTPS login

NTP client

Fault diagnosis

Telnet

File transfer

Syslog

Fan speed adjustment

Fault self-diagnosis

Stacking

Compliance and Standard

Certification and Regulatory Compliance

NDAA Compliant

Safety compliance

Certification

FCC, IC, cTUVus

Package Contents

Device

Manual

User Manual

Warranty Card

Accessories

Rubber pad

Power cord retention clip

Screw

Grounding cable

Power cord

31.49 in. x 1 pieces

Rack-mount bracket

Reference LR300G-P
