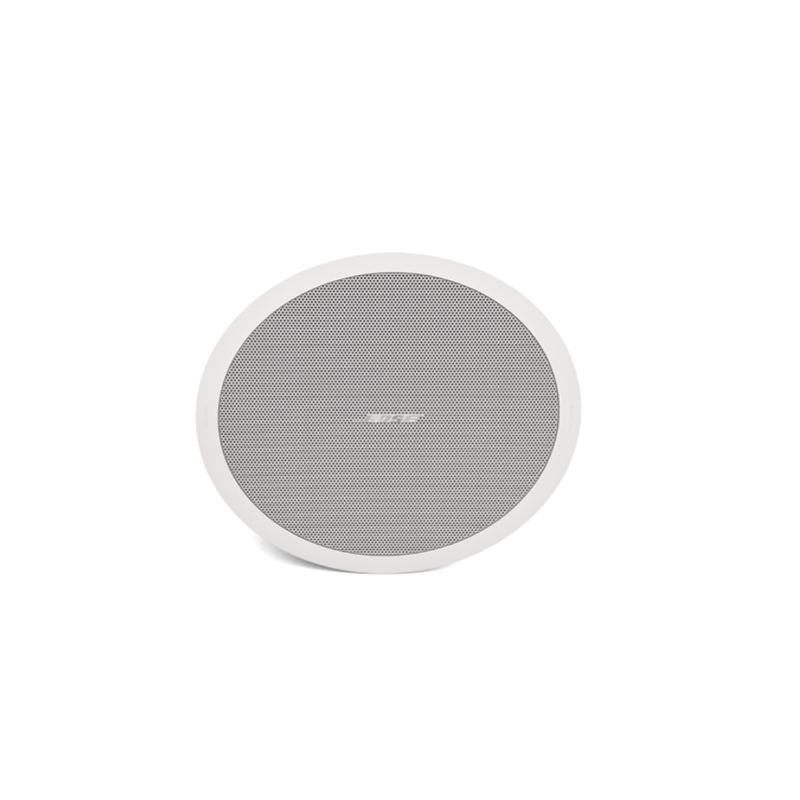

BOSE Professional FreeSpace FS4CE in-ceiling loudspeakers

  • Maintain consistent tonal quality

  • Hear the best of both — music and voice

  • Customize systems with confidence

  • Blend with more room designs

  • Tackle site-specific challenges Install with ease

  • Support public safety

  • Bring quality sound to more places with the FS4CE

FEATURES

  • Maintain consistent tonal quality with shared voicing across all FS models

  • Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music

  • Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mixand-match installations. DesignMax subwoofers and larger models can expand your system design options even further

  • Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos

  • Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options

  • Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models

  • Support public safety — EN54-24 for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

  • Bring quality sound to more places with the FS4CE — rated for outdoor, wet installations

SPECS

Technical Specification

COMPLIANCE

  • EN 54-24 Certified

  • Yes

  • Safety Agency Ratings

  • EN 54-24:2008 for Voice Alarm Systems; UL 1480(A); in compliance with UL 2043 for plenum-space installation; NFPA 70 & NFPA 72; CSA C22.1 Section 32

PHYSICAL

  • Colors

  • Black (similar to RAL 9005), white (similar to RAL 9003)

  • Enclosure Material

  • Engineered-plastics front baffle, highly UV fade-resistant, with integrated steel-formed backcan

  • Grille

  • Perforated steel, powder-coated finish

  • Ingress Protection

  • IP55

  • Ceiling Cutout

  • 9.8 in (249 mm)

  • Logo

  • Rotatable, removable

  • Suspension/Mounting

  • (3) mounting arms, (1) safety cable attachment point

  • Operating Temperature Range

  • -25 °C to 70 °C (-13 °F to 158 °F)

  • Product Dimensions (H×W×D)

  • 10.7 in × 6.8 in (272 mm × 172 mm), loudspeaker diameter × depth / 8.7 in × 6.4 in (220 mm × 163 mm), backcan diameter × depth

  • Net Weight

  • 7.7 lb (3.5 kg), loudspeaker with grille (single)

  • Shipping Weight

  • 20.0 lb (9.1 kg), pair

PERFORMANCE

  • Frequency Range (-10 dB)

  • 70 – 17,000 Hz

  • Coverage, Horizontal

  • 145°

  • Calculated Maximum SPL @ 1 m

  • 104 dB

  • Nominal Impedance

  • 8 Ω (transformer bypass)

  • Power Handling, long-term continuous

  • 40 W

  • Power Handling, Peak

  • 160 W

  • Recommended Signal Processing

  • Not required, Bose Professional EQ voicing and SmartBass processing available

  • Sensitivity (SPL/1 W at 1 m)

  • 88 dB

  • Transformer Taps, 100V

  • 5, 10, 20, 40 W, bypass

  • Transformer Taps, 70V

  • 2.5 W, 5 W, 10 W, 20 W, 40 W, bypass

  • Coverage, Vertical

  • 145°

TRANSDUCERS

  • Driver Protection

  • Recommended high-pass protection 70 Hz with minimum 24-dB/octave filter

  • Low-Frequency

  • 1 × 4.5 in (114 mm) woofer

Product codes

  • 841156-0310
  • FREESPACE FS4CE PAIR BLK
  • 841156-0410
  • FREESPACE FS4CE PAIR WHT
  • 841156-0320
  • FREESPACE FS4CE PAIR BLK (NEW)
  • 841156-0420
  • FREESPACE FS4CE PAIR WHT (NEW)

Included in Packaging

  • (2) weather-resistant input covers

  • (1) cutout template
