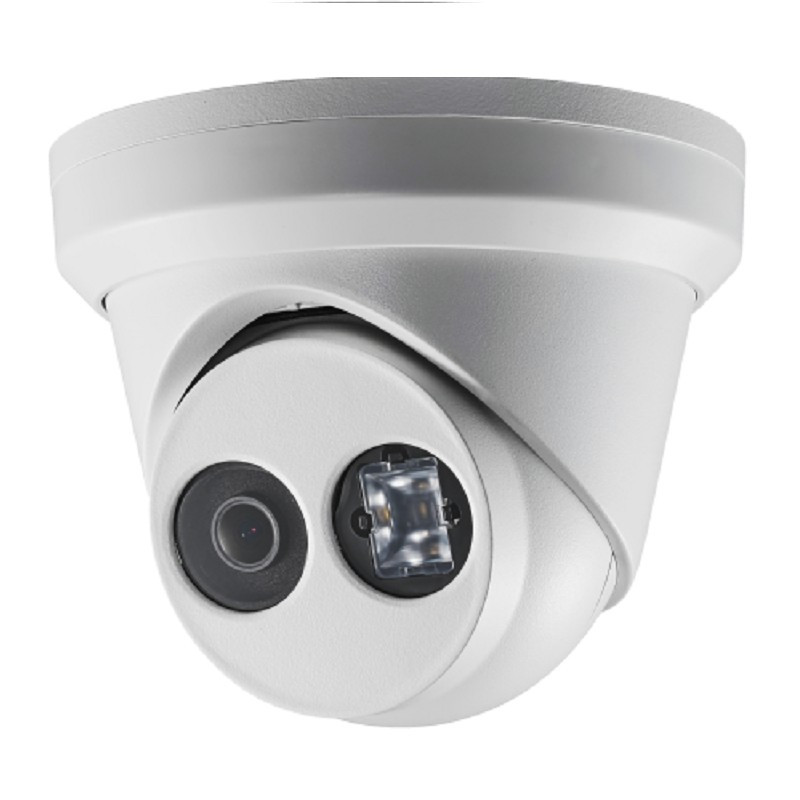

NC328-XD-2.8 | 8MP AcuSense Turret IP Camera 2.8mm Fixed

  • Housing: Metal Turret
  • Resolution: 8MP
  • Image Sensor: 1/3” CMOS
  • Nightvision: Starlight
  • Lens: 2.8mm Fixed Lens
  • WDR: 120dB
  • Water Resistant: IP67
  • Built-In Microphone

Camera

NC328-XD
Image Sensor 1/2.5" Progressive Scan CMOS
Electronic Shutter Speed 1/3 s to 1/100,000 s
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
IR Range Up to 30 m
Lens 2.8 mm, horizontal field of view: 102° 4 mm, horizontal field of view: 79° 6 mm, horizontal field of view: 50° 8 mm, horizontal field of view: 40° 12 mm, horizontal field of view: 23°
3‐Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens Mount M12
Day & Night IR cut filter
DNR 3D DNR
Auto iris F2.0
Slow Shutter Support

Video

Video Bit Rate 32 Kbps to 16 Mbps
Region of Interest Support 1 fixed region for main stream and sub stream separately
H.264+ Supports
H.265 Type Main Profile
H.265+ Supports
Behavior Analysis Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face Detection Human face appears in the image can be detected and trigger linkage method
Third Stream 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Sub‐Stream 50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240)
Main Stream 50Hz: 15fps (3840 × 2160), 25fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 15fps (3840 × 2160), 30fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)

Network

Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
General Function One‐key Reset, Dual‐VCA, Anti‐Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter


Max. Resolution 3840 × 2160
Wide Dynamic Range 120dB
Image Settings Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Day/night Switch Auto/Scheduled
Image Enhancement BLC/3D DNR

Interface

On-Board Storage Built‐in microSD/SDHC/SDXC slot, up to 128 GB

General

Power Supply 12 VDC ± 25%, 6.5 W PoE(802.3af, 42.5 – 57V, class 3), 8.5 W
Dimensions Camera: Φ 127.3 × 95.9 mm (5.01″ × 3.78″) Package: 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″)
Weight Camera: 620 g (1.37 lb.)
Operating Conditions ‐30 °C to +60 °C (‐22 °F to +140 °F), Humidity 95% or less (non‐condensing)
Communication Interface 1 RJ45 10M/100M self‐adaptive Ethernet port
Protection (General) IP67
NC328-XD-2.8
