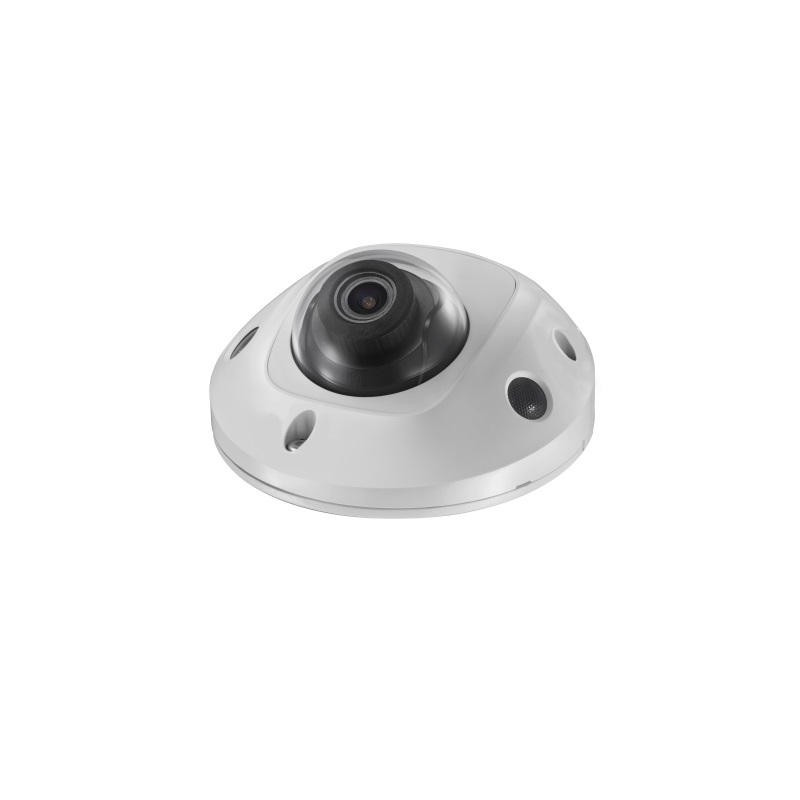

NC324-WDA-2.8 | 4MP Mini Dome IP Camera 2.8mm Fixed

  • Housing: Metal Dome
  • Resolution: 4MP
  • Lens: 2.8mm Fixed
  • WDR: 120dB
  • Built-In Microphone
  • IR: Up to 10m (33ft)

Camera

NC324-WDA 2.8MM
Image Sensor 1/3" Progressive Scan CMOS
Electronic Shutter Speed 1/3 s to 1/100,000 s
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
IR Range Up to 10 m
3‐Axis Adjustment Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens Mount M12
Day & Night IR Cut Filter
Slow Shutter Yes
Wavelength 850nm

Lens

Focal Length 2.8 mm
Max Aperture F1.6
FOV 2.8 mm: Horizontal field of view: 98°, Vertical field of view: 55°, Diagonal field of view: 114°

Video

Video Bit Rate 256 Kbps to 16 Mbps
Region of Interest Support 1 fixed region for main stream and sub-stream separately
H.264+ Yes
H.265 Type Main Profile
H.265+ Yes
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Sub‐Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Main Stream 50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080)

Audio

Compression (audio) G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Interface 2 Inputs: line in (3.5 mm) or mic in (built-in microphone), 1 Output: line out (3.5 mm), mono sound
Audio Sampling Rate 16 kHz, 32kHz, 44.1kHz, 48kHz
Environment Noise Filtering Yes

Network

Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Network Storage Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
User/Host Level Up to 32 users 3 levels: Administrator, Operator and User
General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Client CMS, Guarding Vision
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels


Max. Resolution 2688 × 1520
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120dB
Image Settings Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Day/night Switch Auto/Schedule/Day/Night/Triggered by Alarm In
Image Enhancement BLC/3D DNR

Interface

On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
Alarm Interface 1 Input: Alarm in (3.5mm), 1 Output: Alarm out (3.5mm)
Audio Interface 2 Inputs: line in (3.5 mm) or mic in (built-in microphone), 1 Output: line out (3.5 mm), mono sound

General

Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.7A, max. 8.5W, Φ 5.5mm coaxial plug power PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W
Dimensions 110 mm × 56.4 mm (4.3" × 2.2")
Weight Camera: Approx. 400 g (0.9 lb.)
Material Front cover: plastic, Bottom base: metal
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Protection (General) IK08, IP66
