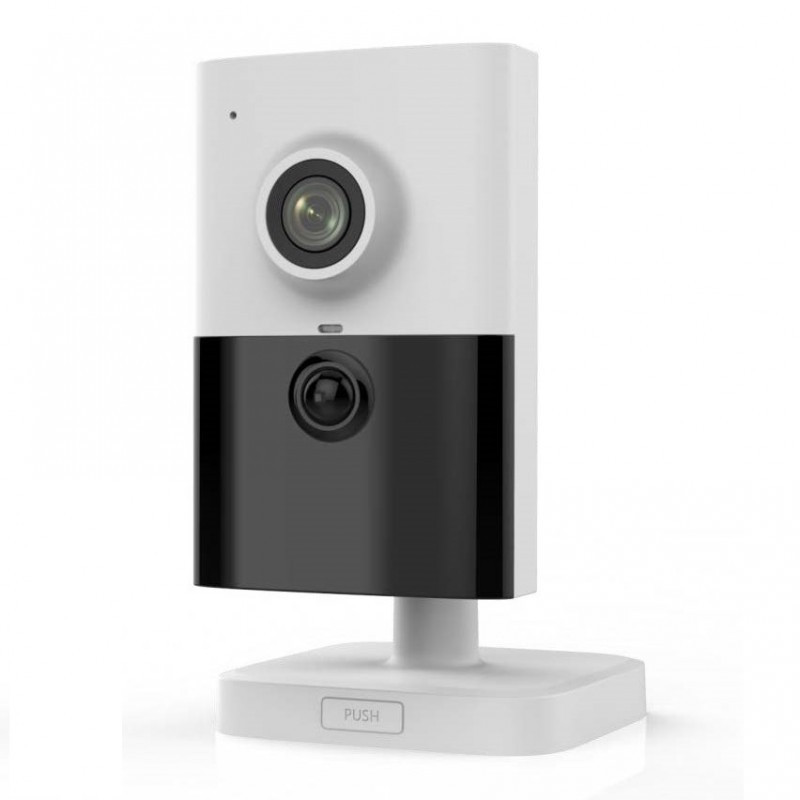

4MP IR Cube IP Camera 2.8mm NC324-CU-2.8
search
  • 4MP IR Cube IP Camera 2.8mm NC324-CU-2.8

4MP IR Cube IP Camera 2.8mm NC324-CU-2.8

  • 2688 × 1520 @ 30fps
  • IR: up to 10 m
  • PIR: 10 m
  • H.265+, H.265, H.264+, H.264
  • 120dB WDR
  • Built-in MicroSD/SDHC/SDXC slot, up to 128G
  • PoE
  • BLC/3D DNR/HLC/ROI
  • Wi-Fi
  • Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR

DATA SHEET

Camera

 NC324-CU 2.8mm
Image Sensor 1/3" Progressive Scan CMOS
Electronic Shutter Speed 1/3 s to 1/100,000 s
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
IR Range 10
3‐Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens Mount M12
Day & Night IR Cut Filter
Slow Shutter Yes
Wavelength 850nm

Lens
Focal Length 2.8 mm
Max Aperture F1.6
Angle of view Horizontal: 90°, Vertical: 80°
FOV 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°

Video
Video Bit Rate 256 Kbps to 16 Mbps
Region of Interest Support 1 fixed region for main stream and sub-stream separately
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Sub‐Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Main Stream 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

Audio
Compression (audio) G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Interface 1 built-in mic, 1 built-in speaker, mono sound
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Environment Noise Filtering Yes

Network
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
User/Host Level Up to 32 users 3 levels: Administrator, Operator and User
General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Client CMS, Guarding Vision, Guarding Expert
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels

Max. Resolution 2688 × 1520
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120dB
Image Settings Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Day/night Switch Day/Night/Auto/Schedule/Triggered by alarm in
Image Enhancement BLC/3D DNR/HLC

Interface
On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128G
Reset Button Yes
Audio Interface 1 built-in mic, 1 built-in speaker, mono sound

General
Power Supply 12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption 12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W
Dimensions 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Weight Camera: Approx. 128 g (0.3 lb.)
Material Plastic
Operating Conditions -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
PIR Sensor Range 10 m
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
NC324-CU-2.8
