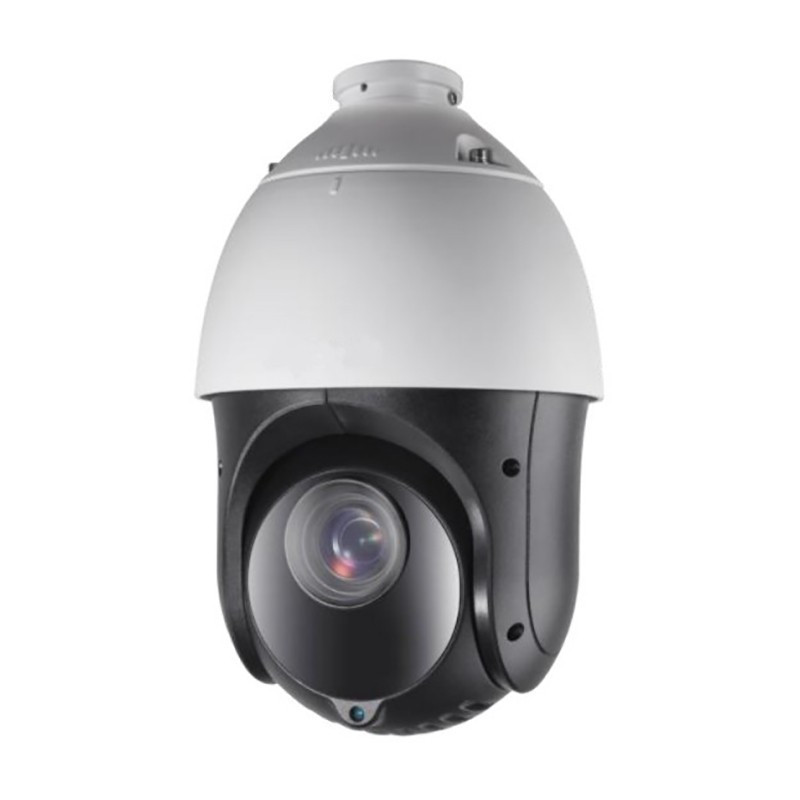

IP-NP112-IR/25X | 2MP 25X Starlight Optical Zoom IP PTZ

  • Housing: PTZ
  • Resolution: 2MP
  • Lens: 20X Optical Zoom
  • Night Vision: Infrared / IR, Starlight
  • WDR: True WDR
  • Water Resistance: IP66
  • Vandal Proof: IK10
  • Intrusion detection, Line crossing detection, Motion detection

Key Features

  • H.265+/H.265 video compression
  • 1/2.8" progressive scan CMOS
  • Resolution: 1920 × 1080 @30fps
  • Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
  • 25× optical zoom, 16× digital zoom
  • WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
  • Up to 100M (328ft) IR distance
  • 12 VDC & PoE+

Specifications
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux, 0 lux with IR
S/N Ratio ≥ 52dB
Backlight Compensation HLC/BLC
White Balance Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Privacy Masking 8 privacy masks programmable
Focal Length 4.7mm~94.0mm(20x Optical zoom
Focus Control Auto / Semiautomatic / Manual
Frame Rate Main Stream 50Hz:25fps(1920×1080), 25fps (1280×720), 60Hz:30fps(1920×1080), 30fps (1280×720) Sub Stream 50Hz:25fps(704×576), 25fps(352×288), 25fps(320×240); 60Hz:30fps(704×480), 30fps(352×240), 30fps(320×240)
Protocol IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
Power Supply 12 VDC, Max.20W
Ingress Protection IP66 (outdoor),TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions Φ164.5(mm)×295(mm)
Weight Approx. 2Kg (4.41Ibs)
Operating Humidity 90% or less
Certification FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Shutter Speed 1/1~ 1/10,000s
Day & Night IR Cut Filter
Communication Interface 1 RJ45 10M/100M Ethernet interface
On-Board Storage Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
Operating Conditions -30°C ~ 65°C (-22°F ~ 149°F)
IR Range Up to 100m
Max. Resolution 1920 × 1080
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Alarm Trigger Intrusion detection, Line crossing detection, Motion detection
Video Compression H.264 / MPEG4 / MJPEG
ROI Support 2 areas with adjustable levels
Automatic Gain Control Auto / Manual
Zoom speed Approx.3s (Optical Wide-Tele)
Angle of view 58.3 ~ 3.2 degree (Wide-Tele)
Min. working distance 10 ~1000mm (Wide-Tele)
Aperture range F1.6 ~ F3.5
Pan / Tilt range Pan:360° endless; Tilt: -15°~90°(Auto Flip)
Pan / Tilt speed Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s
Number of preset 300
Patrol 8 patrols, up to 32 presets per patrol
Park action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Mount option (for outdoor model) Long-arm wall mount: DS-1601ZJ; Short-arm mount: DS-1618ZJ Pendent mount: DS-1661ZJ(20cm) or DS-1662ZJ(50cm
