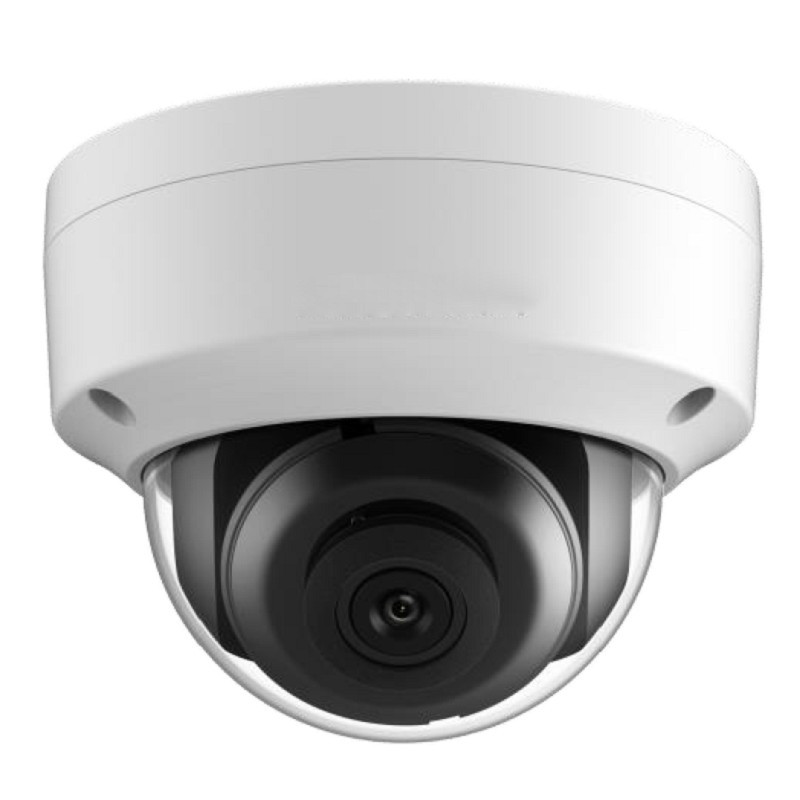

8MP Dome IP Camera 2.8mm IP-D811-2.8
IP Outdoor IR Dome
H.265+ Video Compression
Intrusion Detection
Line Crossing Detection
8MP (3840x2160) Resolution
2.8mm Fixed Lens
Approx. 90 FT IR Range
120dB WDR
Vandal Resistant, 3 Axis Design
Audio Line In
DC12V, PoE
| MODEL | IP-D811-2.8MM |
| Camera | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | 0.027 Lux @ (F1.2, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8mm @ F2.0, Angle of View: 102° |
| Lens Mount | M12 |
| Angle Adjustment | Pan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355° |
| Day & Night | IR Cut Filter With Auto Switch |
| Digtal Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| Compression Standard | |
| Video Compresson | H.265+ / H.264 / MJPEG |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps - 16 Mbps |
| Dual Steam | Support |
| Image | |
| Max. Resolution | 3840 x 2160 |
| Frame Rate |
50 Hz: 20 FPS (3840x2160), 25 FPS (2560x1920, 2048x1536, 1920x1080) 60 Hz: 20 FPS (3840x2160), 30 FPS (2560x1920, 2048x1536, 1920x1080) |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
| BLC | Support, Zone Configurable |
| ROI Codec | Support |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Alarm Trigger | Intrusion Detection, Line Crossing Detection, Motion Detection, Tampering Alarm |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| Standard | ONVIF, PSIA, CGI, ISAPI |
| General | One-key reset, Dual stream, Privacy mask, User Authentication, Watermark |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 9W |
| Ingress Protection | IP67, IK10 |
| IR Range | Approx. 90 FT |
| Dimension | 4.4" x 3.2" |
| Weight | 2 LBS |
IP-D811-2.8
