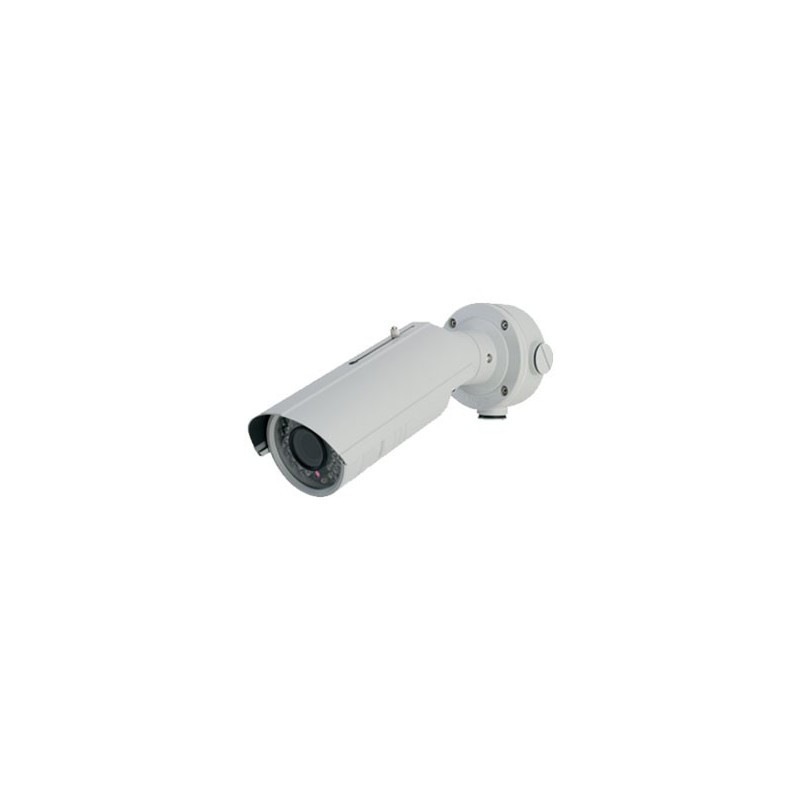

5MP WDR Vari-Focal 2.8-12mm Bullet Camera P-B503VF
IP Outdoor IR Bullet
Intrusion Detection
Line Crossing Detection
5MP (2560x1920) Resolution
2.8-12mm Lens
Approx.100 FT IR Range
120dB WDR
IP66 Rated Weatherproof
DC12V, PoE
| MODEL | IP-B503VF |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination |
0.01 Lux @ (F1.2, AGC On), 0.0 Lux with IR 0.014 Lux @ (F1.4, AGC On), 0.0 Lux with IR |
| Shutter Speed | 1/3 s to 1/10,000 s |
| Lens | 2.8 - 12mm |
| Lens Mount | M14 |
| Day & Night | IR Cut Filter With Auto Switch |
| Digtal Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB |
| Compression Standard | |
| Video Compresson | H.264 / MJPEG / H.264+ |
| H.264 Type | Main Profile |
| Video Bit Rate | 256 Kbps - 16 Mbps |
| Dual Streams | Support |
| Image | |
| Max. Resolution | 2560 x 1920 |
| Frame Rate |
50 Hz: 20 FPS (2560x1920), 25 FPS (2048x1536), 25 FPS (1920x1080) 60 Hz: 20 FPS (2560x1920), 30 FPS (2048x1536), 30 FPS (1920x1080) |
| Image Enhancement | BLC, 3D DNR, ROI |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness |
| Day/Night Switch | Auto / Schedule / Triggered by Alarm In |
| Network | |
| Network Storage | NAS (Support NFS, SMB/CIFS), ANR |
| Alarm Trigger | Intrusion Detection, Line Crossing Detection, Motion Detection, Tampering Alarm |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP |
| Standard | ONVIF, PSIA, CGI, ISAPI |
| General | One-key reset, Dual stream, Privacy mask, User Authentication, Watermark |
| General | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Supply | 12VDC, PoE (802.3af) |
| Power Consumption | Max. 5W (Max. 7.5W with ICR On) |
| Ingress Protection | IP66 |
| IR Range | Approx. 100 FT |
| Dimension | 3.75" x 4.13" x 10.18" |
| Weight | 5 LBS |
IP-B503VF
