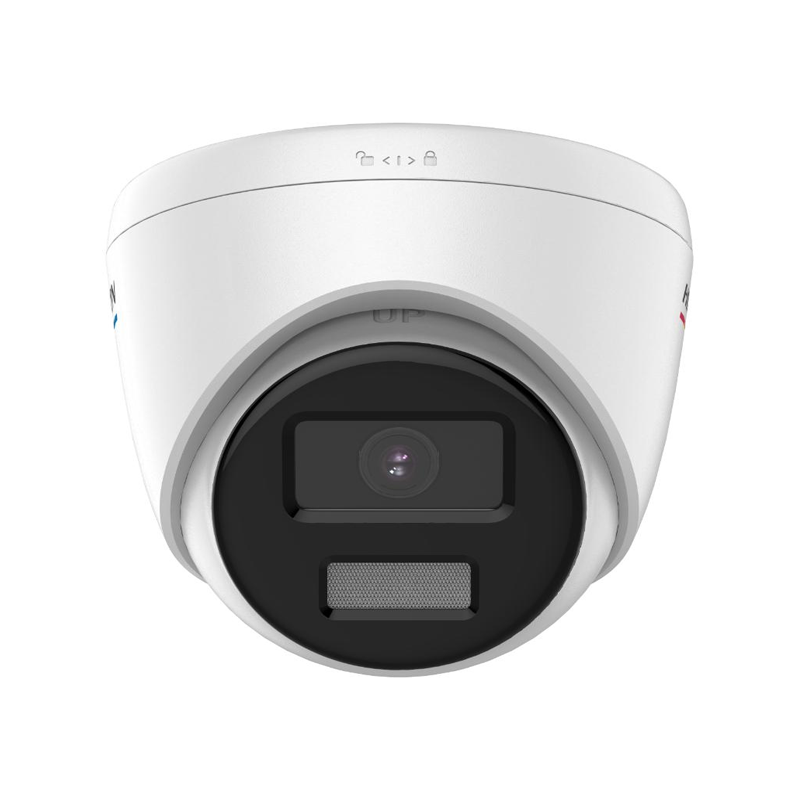

DS-2CD1367G2-LUF 6MP ColorVu MD 2.0 Turret Network Camera 2.8mm

6 MP ColorVu MD 2.0 Fixed Turret Network Camera

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV: 117°, vertical FOV: 64°, diagonal FOV: 138°
Lens MountM12
Iris TypeFixed
ApertureF1.0
Depth of Field
2.8 mm: 2 m to ∞

Video
Main Stream
50 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream

Audio
Audio Type-U: Mono sound
Environment Noise Filtering-U: Yes
Audio Sampling Rate-U: 8 kHz/16 kHz
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G (only -F model supports)),ISAPI,SDK
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
ClientiVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC,HLC,3D DNR
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone-U: Yes
Reset Key-F: Yes

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

General
Power
12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 6.7 W
MaterialMetal & plastic
Dimension

Ø109.9 mm × 103.6 mm (Ø4.3 × 4.1\")"
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight

-L: Approx. 380 g (0.8 lb.), -LUF: Approx. 420 g (0.9 lb.)
With Package Weight

-L: Approx. 620 g (1.4 lb.), -LUF: Approx. 650 g (1.4 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

Reference DS-2CD1367G2-LUF
