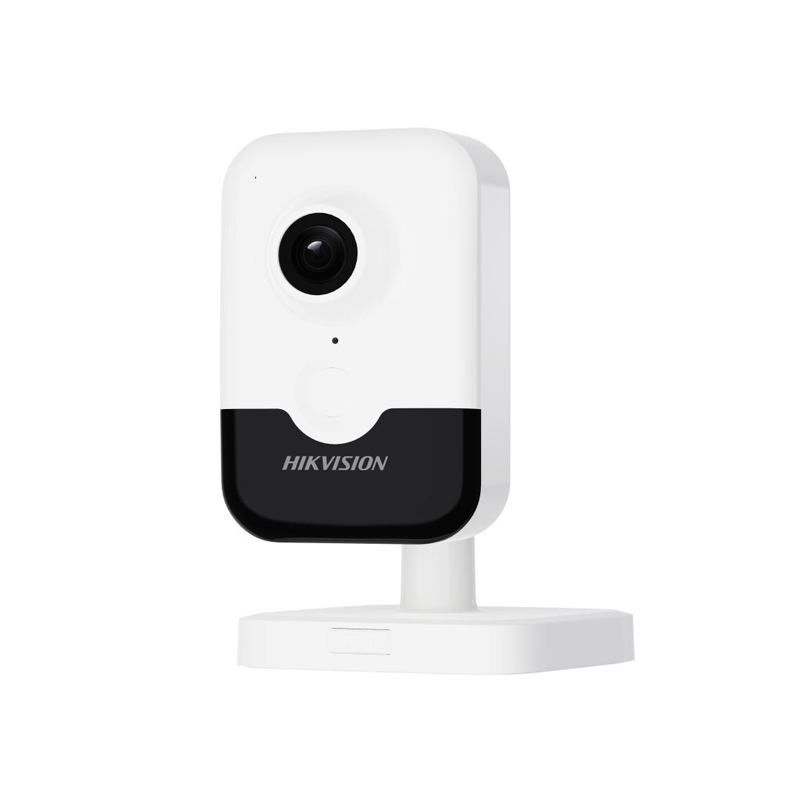

DS-2CD2443G2-IW 4MP Indoor Audio Fixed Human Body Detection Cube Network Camera 2.8mm

4 MP Indoor Audio Fixed Human Body Detection Cube Network Camera

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to Digital WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Provide real-time security via built-in two-way audio
  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Focal Length & FOV

    2.8 mm, horizontal FOV 92°, vertical FOV 50°, diagonal FOV 110°



  • ApertureF1.6
  • Lens MountM12
  • DORI
  • DORI

    2.8 mm: D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m



  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 10 m
  • IR Wavelength850 nm
  • Smart Supplement LightYes
  • Video
  • Main Stream

    50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288)

    60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)

  • Video Compression

    Main stream: H.265/H.264

    Sub-stream: H.265/H.264

  • Video Bit RateUp to 2 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz
  • Audio CompressionG.711/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
  • Network
  • Simultaneous Live ViewUp to 4 channels
  • APIONVIF, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
  • User/HostAdministrator
  • SecurityPassword protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
  • ClientiVMS-4200, Hik-Connect, Hik-Partner-Pro
  • Wi-Fi
  • Encryption ModeWPA-PSK/WPA2-PSK
  • Wi-Fi ProtocolIEEE 802.11b, 802.11g, 802.11n
  • Frequency Range2.412 GHz to 2.472 GHz
  • Channel Bandwidth20 MHz
  • Modulation

    802.11b: CCK, QPSK, BPSK

    802.11g: OFDM

    802.11n: OFDM

  • Wireless RangeUp to 50 m (The performance varies based on actual environment)
  • Transfer Rate

    11b: up to 54 Mbps,

    11g: up to 54 Mbps,

    11n: up to 150 Mbps

  • Image
  • Wide Dynamic Range (WDR)Digital WDR
  • Privacy Mask4 programmable polygon privacy masks
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image Parameters SwitchYes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software
  • Interface
  • Built-in MicrophoneYes, 1 built-in microphone
  • Built-in SpeakerYes, 1 built-in speaker
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Reset KeyYes
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),exception
  • LinkageUpload to memory card, notify surveillance center, trigger capture, audible warning
  • General
  • Power

    12 VDC, 0.38 A, max. 4.56 W, Ø2.0 mm coaxial power plug,

    PoE: IEEE 802.3af, Class 3

  • General FunctionHeartbeat, mirror
  • Storage Conditions-10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
  • MaterialPlastic
  • Dimension102.9 mm × 65.2 mm × 32.9 mm (4.1" × 2.6" × 1.3")
  • Package Dimension150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
  • Approx. 120 g (0.3 lb.)
  • With Package WeightApprox. 430 g (0.9 lb.)
  • Approval
  • EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)
  • RFCE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
  • SafetyCE-LVD (EN 62368-1:2014/A11:2017)
  • Environment

    CE-RoHS (2011/65/EU)

    WEEE (2012/19/EU)

DS-2CD2443G2-IW
