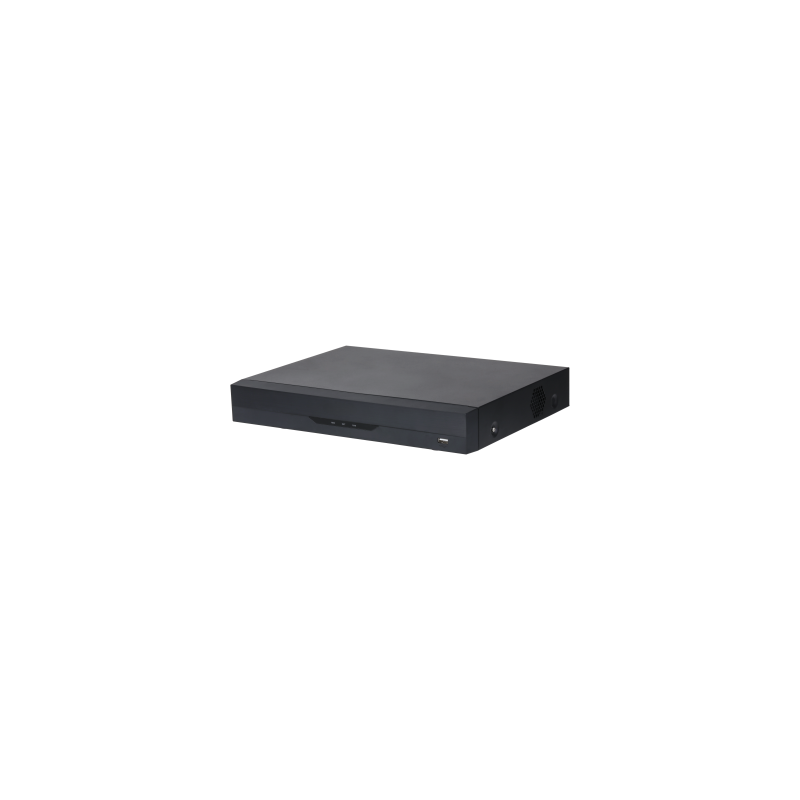

16 Channel Penta-brid 5MP/1080P 1U 1HDD WizSense Digital Video Recorder | EV-5X1016-I3

  • Channels: 16CH
  • Max Recording Resolution: 6MP
  • 1 Sata Port x 16TB
  • HDCVI / AHD / TVI / CVBS / IP
  • Video Outputs: HDMI, VGA
  • Audio in, Audio Out

Key Features

  • H.265+/H.265 dual-stream video compression
  • Supports Full-channel AI Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 24 channels IP camera inputs, each channel up to 6MP
  • Max 128 Mbps incoming bandwidth
  • Up to 4 channels video stream (analog channel) Perimeter Protection
  • Up to 16 channels video stream (analog channel) SMD Plus
  • Up to 2 channels video stream (analog channel) human face recognition
  • IoT & POS functionalities

System
Main Processor Embedded Processor
Operating System Embedded LINUX
Video and Audio
Analog Camera Input 8/16 Channel, BNC
HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera PAL/NTSC
IP Camera Input 8+4/16+8 Channel, each channel up to 6MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Compression H.265+/H.265/H.264+/H.264
Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate Main stream:the 1st & 2nd channels 5M-N(1~10fps), other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/D1/CIF (1~25/30fps)Sub stream: D1/CIF(1~15fps)
Bit Rate 32Kbps ~ 6144Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression AAC(only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Display
Interface 1 HDMI ,1 VGA
Resolution HDMI:8CH: 1920×1080, 1280×1024, 1280×72016CH: 3840×2160, 2560×1440, 1920×1080, 1280×1024,1280×720VGA: 1920×1080, 1280×1024, 1280×720
Multi-screen Display When IP extension mode not enabled:8CH: 1/4/8/916CH: 1/4/8/9/16When IP extension mode enabled:8CH: 1/4/8/9/1616CH: 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 8CH: 1 RJ-45 Port (100M)16CH: 1 RJ-45 Port (1000M)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 8CH: 1/4/916CH: 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
