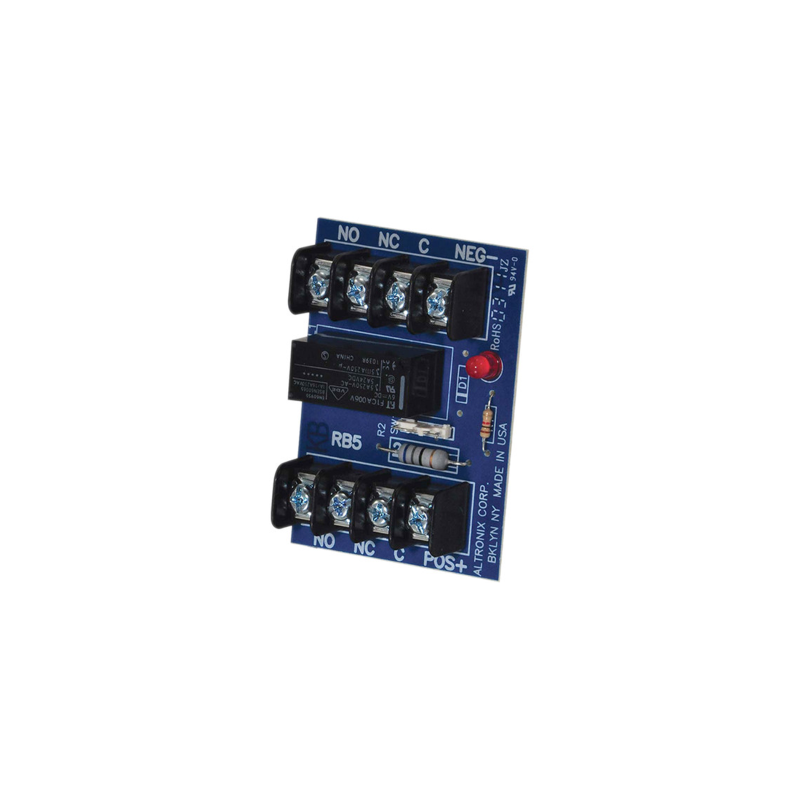

Altronix RB5 Relay

Altronix RB5 relay is designed for continuous duty. This dependable relay will handle any switching application.

Relay Module, 6/12VDC, DPDT Contacts @ 5A - 220VAC/28VDC

  • Input Voltage
    • 6VDC or 12VDC operation.
    • Current draw: 120mA.
  • Contact Rating
    • 5A/220VAC or 28VDC DPDT contacts.
  • Temperature
    • Operating: -25ºC to 55ºC ( -13ºF to 131ºF).
    • Storage: -25ºC to 70ºC ( -13ºF to 158ºF).
    • Relative Humidity: 85% +/- 5%.
  • Dimensions (approximate):
    • 2"W x 2.75"L x 1"H (50.08 mm W x 69.85 mm L x 25.4 mm H).
    Weights (approximate):
    • Product Weight: 0.15 Lbs. (0.06 kg).
    • Shipping Weight: 0.25 Lbs. (0.11 kg).
