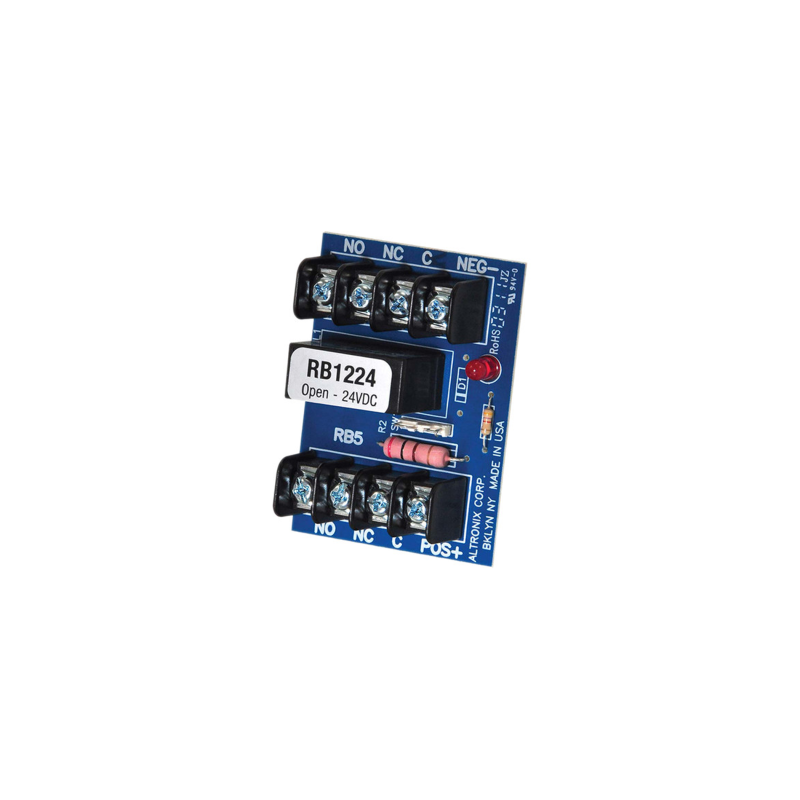

Altronix Relay Module RB1224

Altronix RB1224 Relay Module can be utilized in Dry Contact, Line Seizure, Polarity Reversal, Latching Dry Contact, and much more.

  • Relay Module, 12/24VDC, DPDT Contacts @ 5A - 220VAC/28VDC
  • Input
    • Voltage: 12VDC or 24VDC operation.
    • Current draw: 75mA.
  • Contact Rating
    • 5A/220VAC or 28VDC DPDT contacts.
  • Indicators (LED)
    • Trigger: Relay is triggered
    • Remote LED status output
  • Temperature
    • Operating temperature: -25ºC to 55ºC (-13ºF to 131ºF).
    • Storage temperature: -25ºC to 70ºC (-13ºF to 158ºF).
    • Relative Humidity: 85% +/-5%.

Dimensions (approximate):
  • 2"W x 2.75"L x 1"H (50.8 mm W x 69.85 mm L x 25.4 mm H).
Weights (approximate):
  • Product Weight: 0.15 Lbs. (0.06 kg).
  • Shipping Weight: 0.25 Lbs. (0.11 kg).
