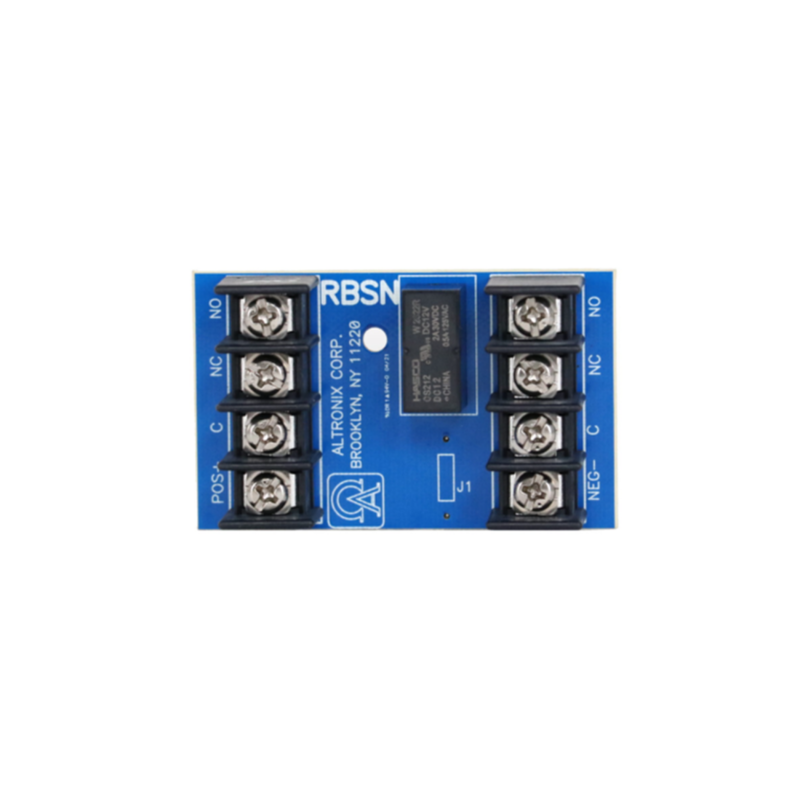

Altronix RBSN Relay Module

Altronix RBSN relay is designed for continuous duty. This dependable relay will handle any switching application.

Relay Module, 12/24VDC, DPDT Contacts @ 1A - 120VAC or 2A - 28VDC

  • Input
    • Voltage:
      • 12VDC or 24VDC operation
      • Current Draw: 15mA
  • Contact Rating
    • 1A/120VAC or 2A/28VDC DPDT contacts.
  • Temperature
    • Operating: -25ºC to 55ºC ( -13ºF to 131ºF).
    • Storage: -25ºC to 70ºC ( -13ºF to 158ºF).
    • Relative Humidity 85% +/- 5%.
Dimensions (approximate):
  • 2"W x 2.75"L x 1"H (50.08 mm W x 69.85 mm L x 25.5 mm H).
Weights (approximate):
  • Product Weight: 0.15 Lbs. (0.06 kg).
  • Shipping Weight: 0.25 Lbs. (0.11 kg).
RBSN
