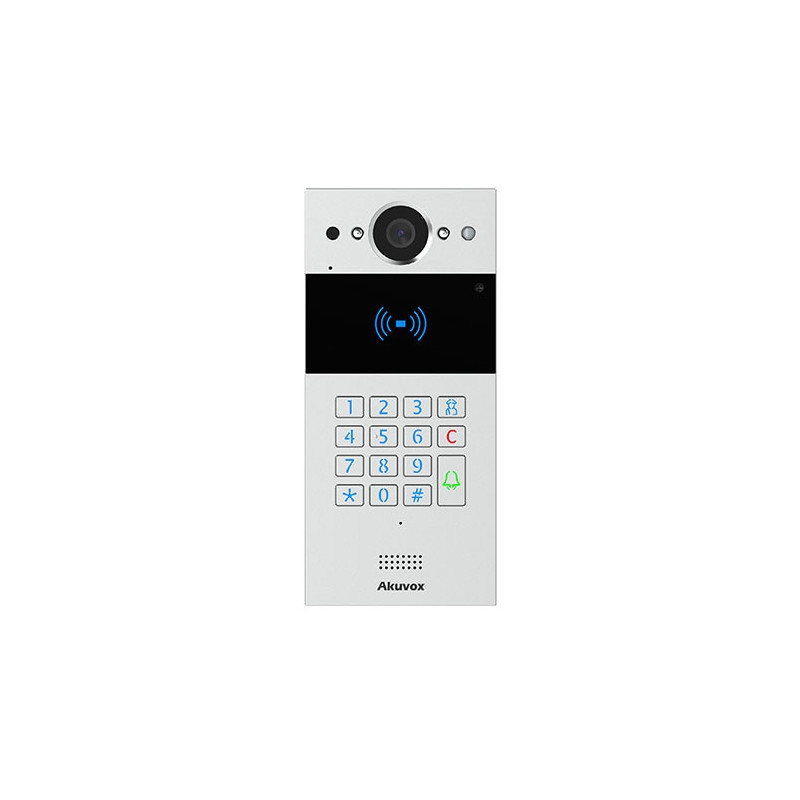

Akuvox 2 Wire Compact IP Door Intercom Unit Keypad Video RFID R20K-2
CALL FOR PRICE
Space-saving and highly compatible, Akuvox R20K is a compact SIP video doorphone with a numeric keypad. It is typically used in apartment and office buildings.
-
Two-pin wire for power supply and network acce
-
Wide-angle camera: 110º (H), 58º (V)
-
IC/ID Card Reader & Keypad embedded
-
Two-way audio communication over IP networks with Echo Cancel & Noise suppression
-
H.264 video compression
| Description | R20K-2 |
|---|---|
| Front panel | Aluminum alloy |
| Camera | 2M pixels, automatic lighting |
| Keypad | Yes |
| Light sensor | Support |
| Infrared sensor | Support |
| Wiegand port | Support |
| RS485 port | Support |
| RF Card Reader | 13.56MHz (with NFC) & 125kHz |
| Microphone | -40dB |
| Relays out | 1 |
| Inputs | 1 |
| Speaker | 4Ω / 3W |
| Power Supply | 48VDC two-wire power suppl |
| Water-proof & Dust-proof | IP65 |
| Working Humidity | 10~90% |
| Working Temperature | -30°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
| Installation | Flush-mounted or Wall-mounted |
| Flush-mounted dimensions | 226 x 108 x 52 mm |
| Wall-mounted dimensions | 185 x 85 x 29 mm |
| Weight (Net) | 0.60kg |
| Weight (Gross) | 1.80kg |
R20K-2
CALL FOR PRICE
